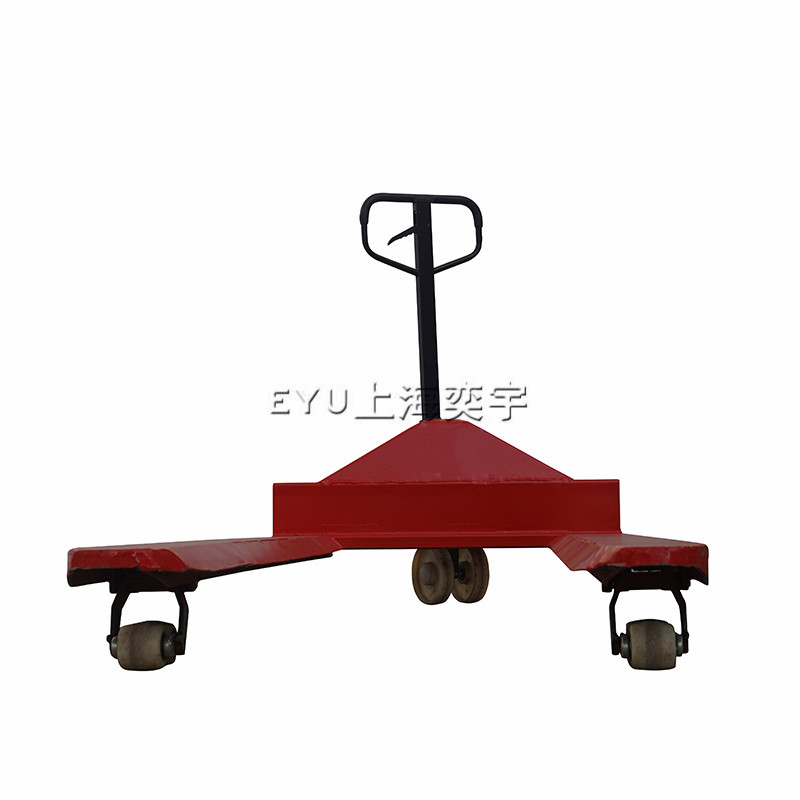

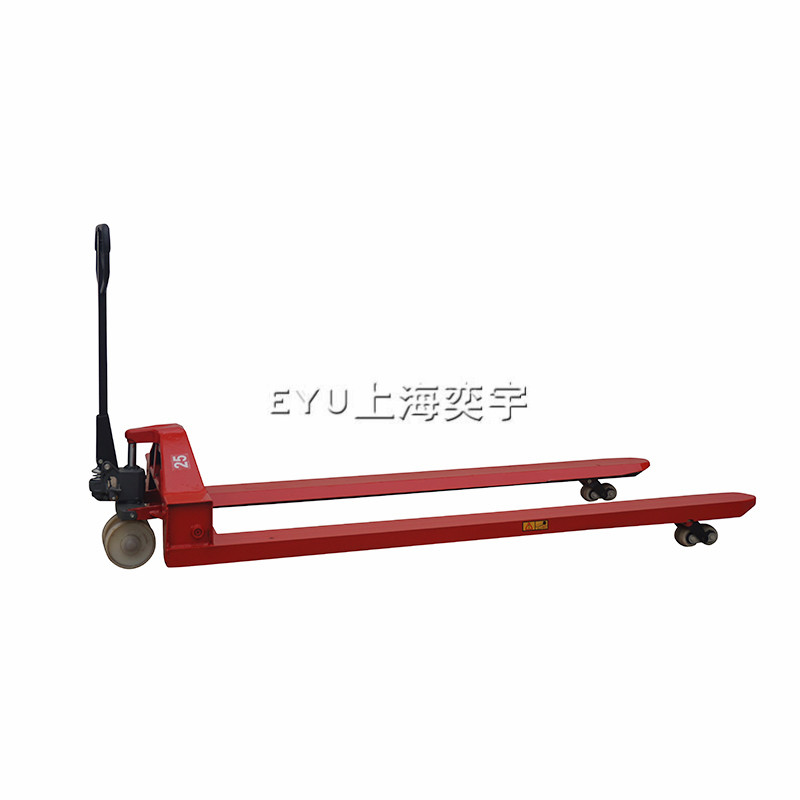

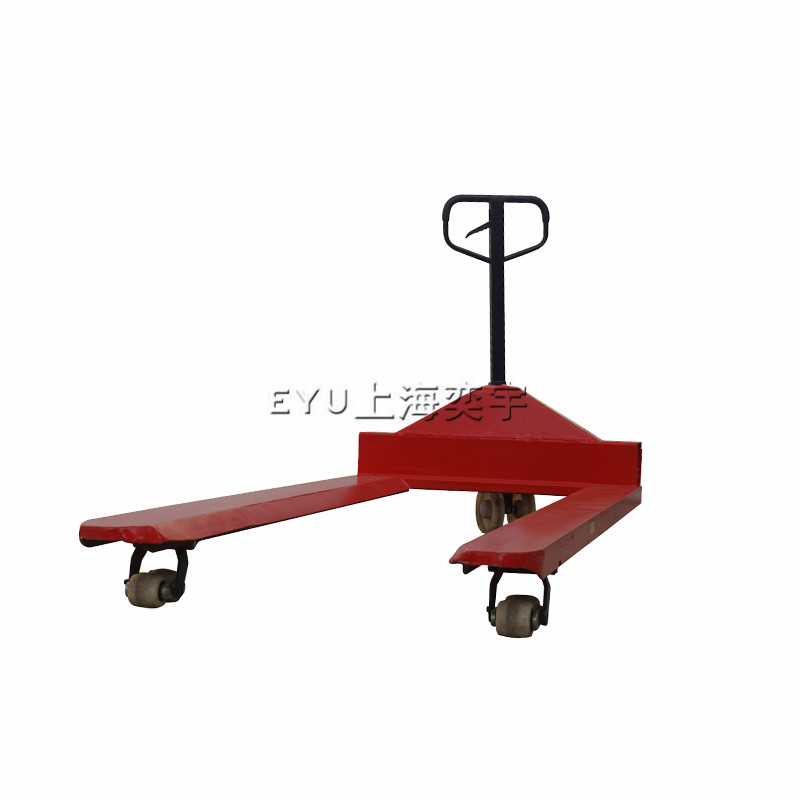

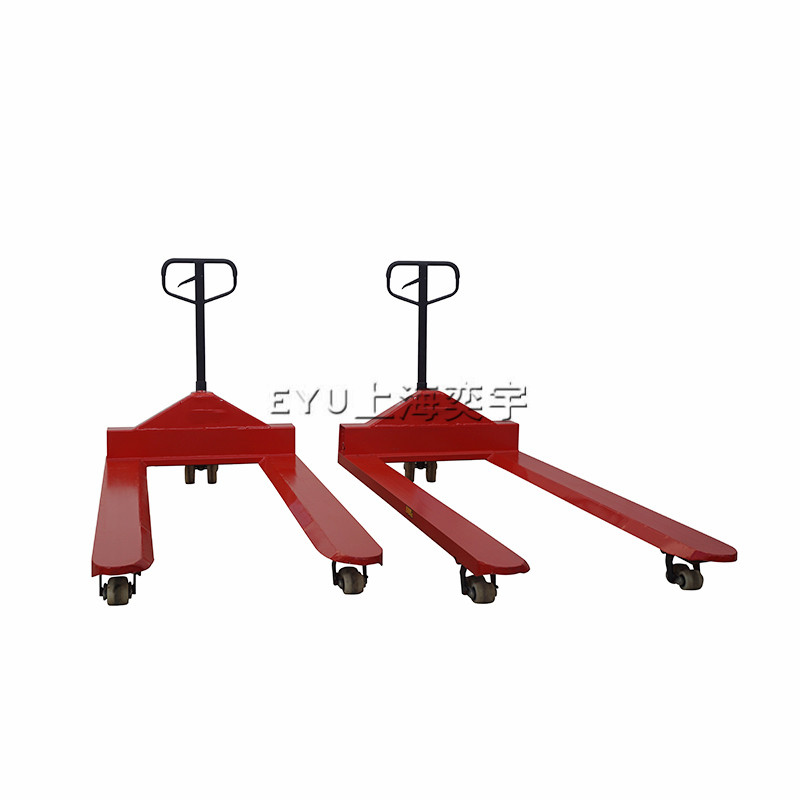

1.手動液壓紗輥經軸搬運車也叫經軸運輸車，液壓盤頭車,車身重型設計，適合長時間工作.
2. 主要運動部位裝配有耐磨導向環,小體積液壓裝置，操作簡單，使用方便.
3.手柄設計符合人體工程學原理，具有三大功能：提升、搬運、放下；
4.整體鑄造油缸，鍍鉻活塞桿，內部溢流閥提供過載保護，下降速度控制
5.手動液壓紗輥經軸搬運車是搬運紙筒、地毯、布料、電纜、木頭、鋼卷、輪胎等圓柱形物的搬運好幫手.
6. 整機優質鋼板打造，堅固耐用，降低維修費用.
手動液壓紗輥經軸搬運車產品參數：
|
型 號 Model |
CBY500-Z |
CBY1000-Z |
CBY1500-Z |
CBY2000-Z |
CBY3000-Z |
|
訂 貨 號Order Number |
5.09001 |
5.09002 |
5.09003 |
5.09004 |
5.09005 |
|
額定載重 Capacity (kg) |
500 |
1000 |
1500 |
2000 |
3000 |
|
起升高度Fork lift height(mm) |
115 |
115 |
115 |
115 |
115 |
|
貨叉最低Fork min height (mm) |
145 |
145 |
145 |
155 |
155 |
|
貨叉最高Fork max.height(mm) |
260 |
260 |
260 |
260 |
260 |
|
貨叉單寬Fork width (mm) |
180 |
180 |
180 |
180 |
180 |
|
貨叉外寬Fork over width(mm) |
1000 |
900 |
800 |
600 |
600 |
|
貨叉長度Fork length (mm) |
700 |
900 |
1100 |
1300 |
1500 |
|
車身重量Weight (Kg) |
79 |
85 |
96 |
107 |
139 |
|
外形尺寸Over size(mm)L*W*H |
1100*1000*1370 |
1300*900*1370 |
1500*800*1370 |
1700*600*1370 |
1900*600*1370 |
|
通道要求 Channel request(mm) |
1200轉彎Turn |
1400轉彎Turn |
1600轉彎Turn |
1800轉彎Turn |
2000轉彎Turn |
|
行走通道Forward and Back request |
1100mm |
1000mm |
900mm |
700mm |
700mm |
|
后輪 Real wheels (mm) |
2*￠180*50 |
||||
|
前輪Front wheels (mm) |
4*￠80*70 |
||||
1.Manual Yarn Roller Pallet Truck also called yarn beam transport vehicle/hydraulic head vehicle.
Heavy body design, suitable for long time work
2.Assemble a wear resistant guide ring, Small volume hydraulic device, operation is simple and easy to use
3.Handle design accord with human body engineering principle, has three major functions: lifting, moving and down.
4.Integrally cast cylinder, chrome plated piston rod, internal relief valve to provide overload protection, speed drop control.
5.Manual Yarn Roller Trolley is a good helper for handling rolls, carpet, cloth, cable,wood, steel and rolls tires…etc.
6.Whole steel manufacturing, Strong and durable, lower maintenance costs
